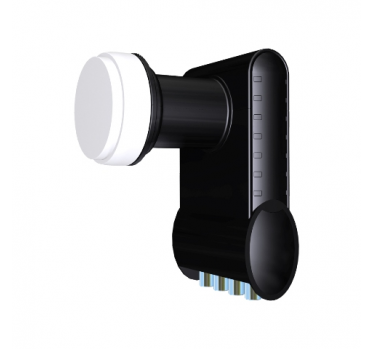

IDLB-QUDR41-H1075-OPP
Apskritiminės poliarizacijos (CIRCULAR) konverteris, skirtas daugiausia tik rusų komerciniams kanalams,t.y: „ NTV+“ , „Tricolor“ paketams, transliuojamiems iš 36 East palydovo.
Quad- Skirtas keturiems imtuvams.

Main Features:
• LO Frequency 10.75 GHz
• Low Phase Noise, DVB-S2 (HDTV) compliant
• Low Noise Figure
• Low Power Consumption
• High Cross Polarization Isolation
• High Frequency Stability
Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities for receiving circular polarized signals on the high band. The LNB is factory-set for easy connectivity with any LO 10.75 Preset Set Top Boxes. It enables the reception of signals from one satellite and its distribution to a Set Top Box with Single Tuner. This LNB fully supports High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards., this LNB is an ideal solution for the satellite broadcast reception across Europe.

Product Specifications:
High Band Input Frequency Range: 11.7 ~ 12.75 GHz
High Band Output Frequency Range: 950 ~ 2000 MHz
High Band LO Frequency: 10.75 GHz
Noise Figure: 0.3 dB Typ. (0.7dB Max.)
LO Initial Accuracy: +/- 1.0 MHz Max.
LO Temperature Drift: +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz): - 80 dBc / Hz Max.
Conversion Gain: 55 dB Min.
Gain Ripple (Over 26MHz Bandwidth): +/- 0.75 dB
Gain Variation (Over Full Band):  +/- 4 dB Max.
Image Rejection: 40 dB Min.
1 dB Compression Point (@ Output): 0.0 dBm Min.
Cross Polarization Isolation: 22 dB Min.
Control Signal Ca (Vertical Polarization): 11.0 ~ 14.0 V
Control Signal Cb (Horizontal polarization): 16.0 ~ 20.0 V
Output VSWR: 2.5 : 1
In-Band Spurious: - 60 dBm Max.
Current Consumption: 170 mA Max. @ 11 ~ 20 V
Operating Temperature: - 35 °C  ~  + 60 °C
Output Impedance: 75 Ω
Output Connector: F-Type (Female)
Weight: 250 g
