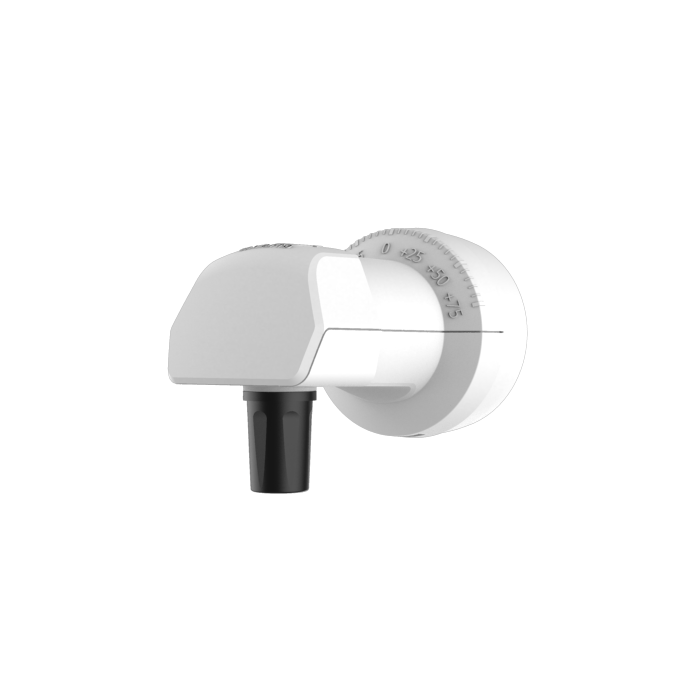

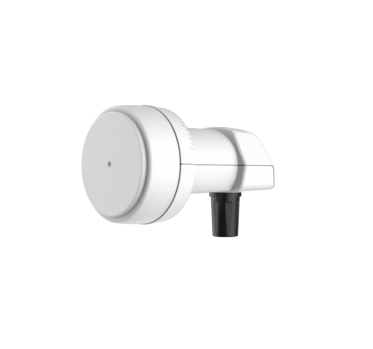

IDLP-SNR410-H1075-OPX
Apskritiminės poliarizacijos (CIRCULAR) konverteris, skirtas daugiausia tik rusų FTA ir komerciniams kanalams, t.y: „ NTV+“ , „Tricolor“ paketams, transliuojamiems iš 36East, 56East palydovų.
Main features:
- LO frequency 10.75 GHz
- Low phase noise
- HDTV-DVB-S2 compliant
- Low noise figure
- Low power consumption
- High cross-polarization isolation
- High frequency stability
Technical specifications:
- High band input frequency range: 11.7 GHz ~ 12.75 GHz
- High band output frequency range: 950 MHz ~ 2000 MHz
- High band LO frequency: 10.75 GHz
- Noise figure: 0.8 dB typ.
- LO temperature drift: ±2 MHz
- LO initial accuracy: ±1 MHz
- Polarization: Circular
- LO phase noise @ 1 kHz: -70 dBc/Hz max.
- LO phase noise @ 10 kHz: -80 dBc/Hz max.
- LO phase noise @ 100 kHz: -90 dBc/Hz max.
- Conversion gain: 55 dB ~ 65 dB
- Gain ripple (over 26 MHz bandwidth): ±1 dB
- Gain variation (over full band): ±3 dB
- Image rejection: 40 dB min.
- 1 dB compression point (@ output): 0.0 dBm min.
- Cross polarization isolation:18 dB min.
- Polarization selection - LHCP: 10.5 V ~ 14.5 V
- Polarization selection - RHCP: 15.5 V ~ 21.0 V
- Output VSWR: 2.0 : 1
- Current consumption: 150 mA max. @ 10.5 V ~ 20 V
- Operating temperature: -30 °C ~ +60 °C
- Output impedance: 75 Ω
- Output connector type: F-Type (female)
- Weight: 90 g
